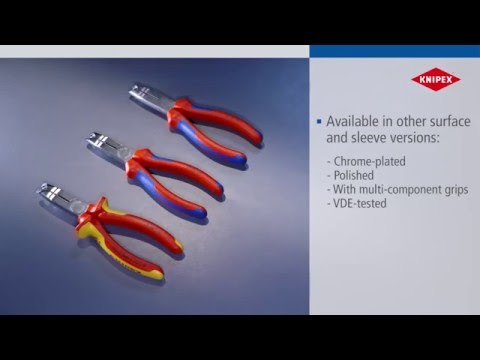

13 46 165Stripping Pliers
Share
- ›Multifunctional - cutting and stripping with one pair of pliers
- ›For time-saving stripping of all round sheathed and damp-proof installation cables (e.g. NYM cable)
- ›Simplified access especially into deep mounted junction boxes thanks to slim head design and optimally angled cable sheath cutter
- ›Strip cables easily and without damage thanks to circular cutting edge with depth limiter
- ›Suitable for universal use: precision wire stripping holes for conductors from 1.5 and 2.5 mm²
- ›With side cutters for cutting and trimming conductors, wires, small screws and nails
- ›All cutting edges additionally induction-hardened to approx. 61 HRC for high wear resistance
- ›30% lighter than comparable pliers
Technical attributes
- Part No.
- 13 46 165
- EAN
- 4003773079699
- Pliers
- chrome-plated
- Head
- chrome-plated
- Handles
- insulated with multi-component grips, VDE-tested
- Weight
- 190 g
- Dimensions
- 165 x 57 x 27 mm
- Standard
- DIN EN 60900 IEC 60900
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacities medium hard wire (diameter)
- Ø 3.2 mm
- Cutting capacities hard wire (diameter)
- Ø 2.2 mm
- Stripping capacities (diametre)
- 8 - 13 mm
- Stripping capacities in square millimetres
- 0.75 — 1.5 mm² / 2.5 mm²
- VDE tested
- yes
