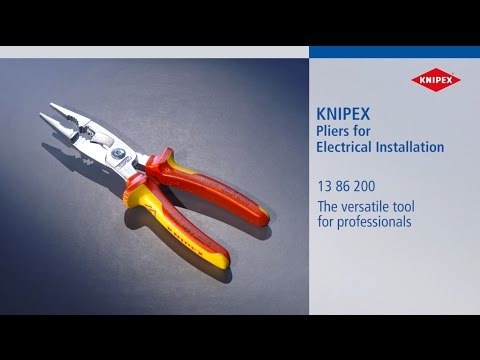

13 86 200Pliers for Electrical Installation
Share
- ›6 functions in one pair of pliers
- ›To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules
- ›Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material
- ›Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes
- ›Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
- ›Crimping die for wire ferrules 0.5 - 2.5 mm²
- ›Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
- ›Slim dimensions for easy access
- ›Bolted joint: precise, zero backlash operation of pliers
Technical attributes
- Part No.
- 13 86 200
- EAN
- 4003773075097
- Pliers
- chrome-plated
- Head
- chrome-plated
- Handles
- insulated with multi-component grips, VDE-tested
- Weight
- 272 g
- Dimensions
- 200 x 85 x 20 mm
- Standard
- DIN EN 60900 IEC 60900
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacity copper cable, multiple-stranded
- 50 mm²
- Stripping capacity for single strands
- 0.75 — 1.5 mm² / 2.5 mm²
- Capacity in square millimetres
- 0.5 — 2.5 mm²
- AWG
- 1 / 0
- VDE tested
- yes
