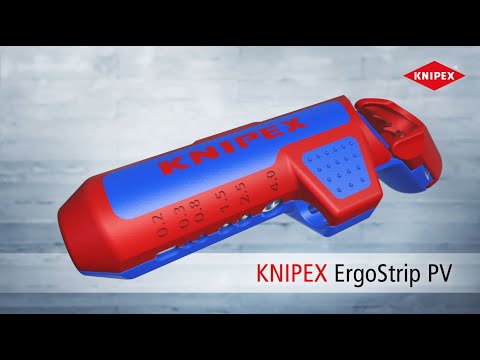

16 95 03 SBKNIPEX ErgoStrip® PV
Share
- ›For fast and precise stripping of PV cables with 4 and 6 mm² (e. g. H1Z2Z2-K) and all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²)
- ›Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
- ›Length stop for PV cables: adjustable from 6 - 18 mm for repetitive stripping lengths, suitable for all standard solar connectors
- ›Conical, slimmed down tool ends for better access in confined areas
- ›Wire stripping mechanism for PVC single conductors (e. g. H07V-K) with cross sections 0,2 / 0,3 / 0,8 / 1,5 / 2,5 / 4 mm²
- ›Simplified insertion of single wires for stripping using location ridges
- ›With opening spring and locking device
- ›Multi-component design with a soft plastic zone for comfortable use and a secure grip
Technical attributes
- Part No.
- 16 95 03 SB
- EAN
- 4003773092605
- Weight
- 65 g
- Dimensions
- 246 x 85 x 38 mm
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Stripping capacities round cable (diametre)
- Ø 8 - 13 mm
- Stripping capacity conductors and strands
- 0.2 — 4.0 mm²
