KNIPEX X-Cut® Compact Diagonal Cutter High lever transmission

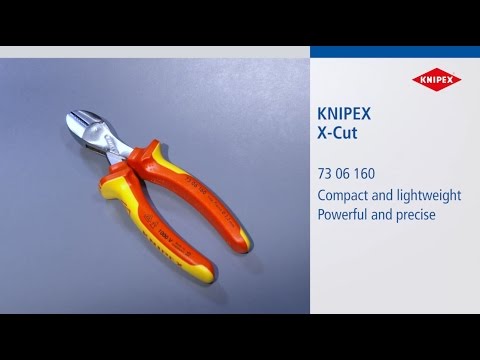

KNIPEX X-Cut® Compact Diagonal Cutter High lever transmission video►KNIPEX X-Cut® Compact Diagonal Cutter High lever transmission video►
1/12

73 06 160KNIPEX X-Cut®Compact Diagonal Cutter High lever transmission

Share
  • ›Cuts finest strands as well as multi-core cables and piano wires
  • ›Powerful, light and universal
  • ›High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
  • ›Box-joint design: highest stability with low weight
  • ›Doubly supported joint axis for heavy duty
  • ›Large opening width for thicker cables
  • ›Cuts precisely, even through fine copper wires
  • ›Compact, low-weight construction
  • ›Universally usable, in the assembly, maintenance and production
  • ›40% less force required compared with standard diagonal cutters of the same length
  • ›Precision cutting edges also induction-hardened (hardness approx. 62 HRC), for all wire types including piano wire

Technical attributes

Part No.
73 06 160
EAN
4003773075141
Pliers
chrome-plated
Head
chrome-plated
Handles
insulated with multi-component grips, VDE-tested
Weight
175 g
Dimensions
160 x 60 x 28 mm
Standard
DIN ISO 5749 DIN EN 60900 IEC 60900
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities soft wire (diameter)
Ø max. 4.8 mm
Cutting capacities medium hard wire (diameter)
Ø 3.8 mm
Cutting capacities hard wire (diameter)
Ø 2.7 mm
Cutting capacities piano wire (diameter)
Ø 2.2 mm
Cutting capacity copper cable, multiple-stranded
Ø 12.0 mm
VDE tested
yes
