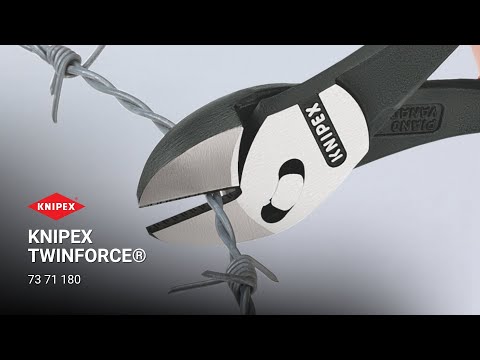

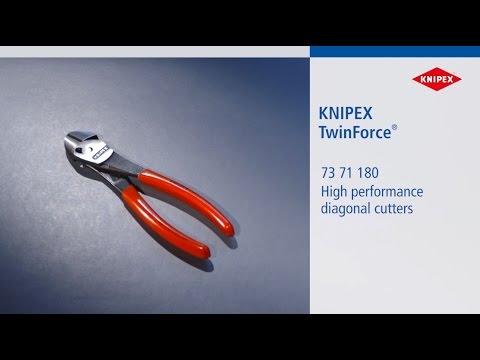

73 71 180KNIPEX TwinForce®High Performance Diagonal Cutters
Share
- ›The superior high leverage diagonal cutter with patented double joint
- ›Ideal transmission of force due to double-hinged design
- ›Reliably cuts all types of wire, including steel tape
- ›For rough or very fine cutting
- ›Low cutting impact: gentle on hands. The tension on muscles and tendons is relieved
- ›For comfortable cutting, repetitive cutting or extremely hard cutting jobs
- ›High degree of stability and zero-backlash due to precisely milled forged-in axles
- ›Cutting edges additionally induction-hardened, cutting edge hardness approx. 64 HRC
Technical attributes
- Part No.
- 73 71 180
- EAN
- 4003773074762
- Pliers
- black atramentized
- Head
- polished
- Handles
- with plastic coating
- Weight
- 255 g
- Dimensions
- 180 x 49 x 16 mm
- Standard
- DIN ISO 5749
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacities soft wire (diameter)
- Ø max. 5.5 mm
- Cutting capacities medium hard wire (diameter)
- Ø 4.6 mm
- Cutting capacities hard wire (diameter)
- Ø 3.2 mm
- Cutting capacities piano wire (diameter)
- Ø 3.0 mm
Documents
All variations
73 72 180
KNIPEX TwinForce® High Performance Diagonal Cutters
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 180 mm
73 72 180 F
KNIPEX TwinForce® High Performance Diagonal Cutters With opening spring
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 180 mm
