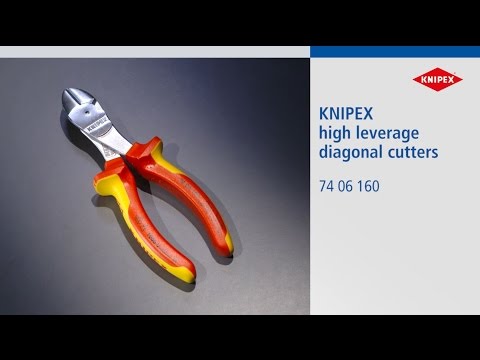

74 06 160High Leverage Diagonal Cutter
Share
- ›For very tough, continuous use
- ›High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio
- ›Precision cutting edges also induction-hardened (hardness approx. 64 HRC), for all wire types including piano wire
Technical attributes
- Part No.
- 74 06 160
- EAN
- 4003773040705
- Pliers
- chrome-plated
- Head
- chrome-plated
- Handles
- insulated with multi-component grips, VDE-tested
- Weight
- 215 g
- Dimensions
- 160 x 57 x 19 mm
- Standard
- DIN ISO 5749 DIN EN 60900 IEC 60900
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacities medium hard wire (diameter)
- Ø 3.4 mm
- Cutting capacities hard wire (diameter)
- Ø 2.5 mm
- Cutting capacities piano wire (diameter)
- Ø 2.0 mm
- VDE tested
- yes
Documents
All variations
74 12 180
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 180 mm
74 21 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Length
- 200 mm
74 21 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Length
- 250 mm
74 22 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 200 mm
74 22 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 250 mm
74 22 250 T
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Length
- 250 mm
74 01 140
High Leverage Diagonal Cutter
- Length range
- 100-140 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Length
- 140 mm
74 01 160
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Normal size
- 160 mm
- Length
- 160 mm
74 01 180
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Normal size
- 180 mm
- Length
- 180 mm
74 01 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Length
- 200 mm
74 01 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Length
- 250 mm
74 02 140
High Leverage Diagonal Cutter
- Length range
- 100-140 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Length
- 140 mm
74 02 160
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Length
- 160 mm
74 02 180
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Normal size
- 180 mm
- Length
- 180 mm
74 02 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Normal size
- 200 mm
- Length
- 200 mm
74 02 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Length
- 250 mm
74 05 140
High Leverage Diagonal Cutter
- Length range
- 100-140 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Length
- 140 mm
74 05 160
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Length
- 160 mm
74 05 180
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- with comfort handles
- Normal size
- 180 mm
- Length
- 180 mm
74 05 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- with comfort handles
- Length
- 200 mm
74 05 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- with comfort handles
- Length
- 250 mm
74 06 180
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Normal size
- 180 mm
- Length
- 180 mm
74 06 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Normal size
- 200 mm
- Length
- 200 mm
74 06 200 T
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Normal size
- 200 mm
- Length
- 200 mm
74 06 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Length
- 250 mm
74 06 250 T
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- multi-component grips
- Length
- 250 mm
74 07 200
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- with dipped insulation
- Length
- 200 mm
74 07 250
High Leverage Diagonal Cutter
- Length range
- 181-250 mm
- Surface
- chrome-plated / zinc-plated
- Grips
- with dipped insulation
- Length
- 250 mm
74 12 160
High Leverage Diagonal Cutter
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Length
- 160 mm
