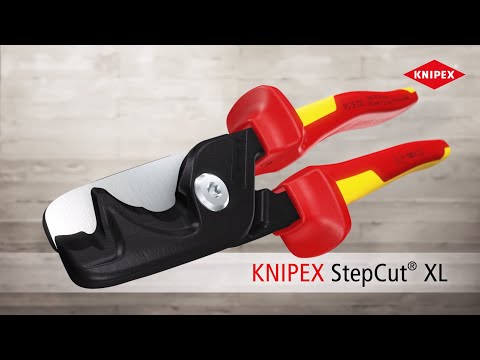

95 12 225KNIPEX StepCut® XLCable shears with step cut
Share- ›High-leverage joint, long handles and optimised cutting edges: noticeably easier cutting than with compact cable shears
- ›Large cutting capacity: cuts solid copper or aluminium cables up to 35 mm², stranded cables up to 70 mm²and fine stranded cables up to 120 mm²
- ›Dual cutting areas: Stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step
- ›Easy one- or two-handed operation with minimum handle opening for large cable diameters
- ›Adjustable, high-leverage bolted joint provides precise and smooth cutting
- ›Slim head for easier accessibility
- ›Pinch guard prevents operators' fingers being pinched
- ›Not suitable for steel-reinforced cables, e.g. ACSR
- ›Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
- ›With comfort handles made of three ergonomic components for optimised handling and with two KNIPEXtend interfaces for extensions
Technical attributes
- Part No.
- 95 12 225
- EAN
- 4003773088899
- Shears
- burnished
- Head
- burnished
- Handles
- with comfort handles
- Weight
- 425 g
- Dimensions
- 225 x 60 x 25 mm
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
Documents
All variations

95 11 225
KNIPEX StepCut® XL Cable shears with step cut
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Normal size
- Ø 23 mm / 70 mm²
- Length
- 225 mm

95 18 225
KNIPEX StepCut® XL Cable shears with step cut
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- Ø 23 mm / 70 mm²
- Length
- 225 mm
