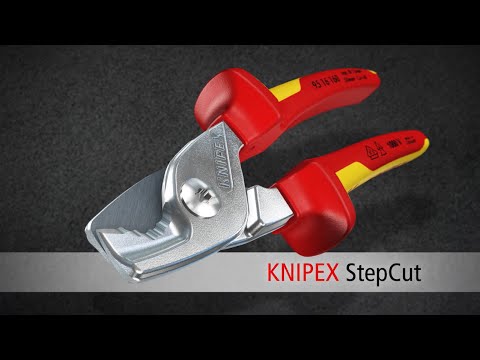

95 16 160KNIPEX StepCut®Cable Shears
Share
- ›Small, light, strong: comfortable cutting without crushing and just 160 mm in size
- ›Noticeably less effort: the gradations cut wires one after the other; cutting is up to 40% easier than with standard cable shears of the same length!
- ›Ergonomic handle design: optimal cutting feel even for larger cable diameters
- ›Cuts multi-core stranded copper and aluminium cables up to Ø 15 mm (50 mm²)
- ›Cuts solid copper and aluminium cables up to 5 x 4 mm²
- ›Cuts without crushing
- ›Bolted joint: precise, effortless, durable
- ›Pinch guard prevents operators' fingers being pinched
- ›Not suitable for steel wire and hard drawn copper conductors
- ›Cutting edges additionally induction-hardened, cutting edge hardness approx. 56 HRC
Technical attributes
- Part No.
- 95 16 160
- EAN
- 4003773085966
- Shears
- chrome-plated
- Head
- chrome-plated
- Handles
- insulated with multi-component grips, VDE-tested
- Weight
- 225 g
- Dimensions
- 160 x 60 x 28 mm
- Standard
- DIN EN 60900 IEC 60900
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacity copper cable, multiple-stranded
- Ø 15 mm
- AWG
- 1 / 0
- VDE tested
- yes
Documents
All variations
95 11 160
KNIPEX StepCut® Cable Shears
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with plastic coating
- Normal size
- Ø 15 mm / 50 mm²
- Length
- 160 mm
95 12 160
KNIPEX StepCut® Cable Shears
- Length range
- 141-180 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- with comfort handles
- Normal size
- Ø 15 mm / 50 mm²
- Length
- 160 mm
