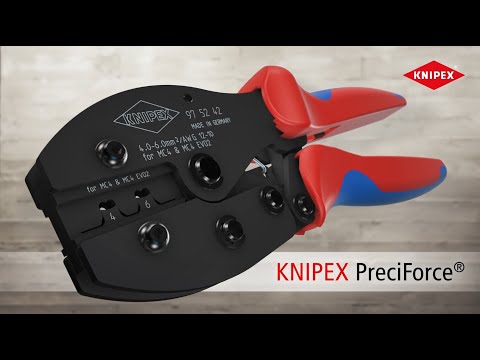

97 52 426KNIPEX PreciForceCrimping pliers for MC4®/MC4® Evo 2 connectors
Share
- ›Cut, strip, crimp: just one pair of pliers for working on conductors for MC4® and MC4® Evo 2 PV plug type connectors
- ›For installation, repair and maintenance of photovoltaic systems
- ›With improved crimp geometry for very good conductivity
- ›Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked)
- ›Precise, factory calibrated crimping pressure
- ›Efficient lever action ensures a high crimping force
- ›Good handling due to favourable handle position, low weight, short design and ergonomically shaped handles
- ›Crimping die is not exchangeable
Technical attributes
- Part No.
- 97 52 42 6
- EAN
- 4003773093749
- Pliers
- burnished
- Head
- burnished
- Handles
- with non-slip plastic grips
- Weight
- 488 g
- Dimensions
- 220 x 63 x 23 mm
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
Documents
All variations
97 52 30
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 1,5 – 10,0 mm²
- Length
- 220 mm
97 52 33
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,5 – 10 mm²
- Length
- 220 mm
97 52 34
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,1 – 2,5 mm²
- Length
- 220 mm
97 52 35
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,5 – 6,0 mm²
- Length
- 220 mm
97 52 36
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,5 – 6,0 mm²
- Length
- 220 mm
97 52 37
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,5 – 6,0 mm²
- Length
- 220 mm
97 52 38
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,25 – 6,0 mm²
- Length
- 220 mm
97 52 42
KNIPEX PreciForce Crimping pliers for MC4®/MC4® Evo 2 connectors
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 4 – 6 mm²
- Length
- 220 mm
97 52 50
KNIPEX PreciForce Crimping Pliers
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- RG 58 / 174 / 188 / 316
- Length
- 220 mm
