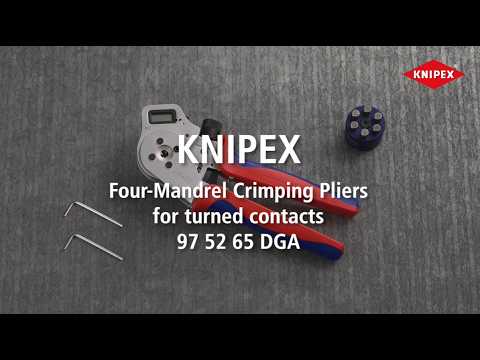

97 52 65 DGAFour-Mandrel Crimping Pliers for turned contacts

›Basic pliers without locator for crimping turned pin and socket contacts from various contact manufacturers, for cable cross-sections from 0.14 to 6 mm²

›Crimp mandrel feed adjustable in increments of 0.01 mm and digitally readable; setting in mm, inch or comparable selector settings according to MIL standard
›Electronic wear monitoring (patented) with warning function
›Process-secure and consistently high crimp quality thanks to IEC 60352-compliant trigger lock (positive lock, can be unlocked)
›With recalibration function; check basic setting using the enclosed test pin
›Separately available locators enable the exact positioning of the crimp contacts
›Pliers in a plastic case with foam insert

Length

Technical attributes

Part No.: 97 52 65 DG A
EAN: 4003773071990
Pliers: chrome-plated
Head: chrome-plated
Handles: with multi-component handles
Weight: 633 g
Dimensions: 240 x 86 x 19 mm
REACH compliant: contains SVHC
RoHS compliant: not applicable
Application: turned contacts (Harting; Ilme; Phoenix; Amphenol®; Walther; HTS; Contact; Weidmüller)
Capacity in square millimetres: 0.14 — 6 mm²
AWG: 26 — 10
Number of crimp profiles: 1
Max. contact diameter: 7.5 mm
