KNIPEX EvoStrip Self-Adjusting Insulation Stripper

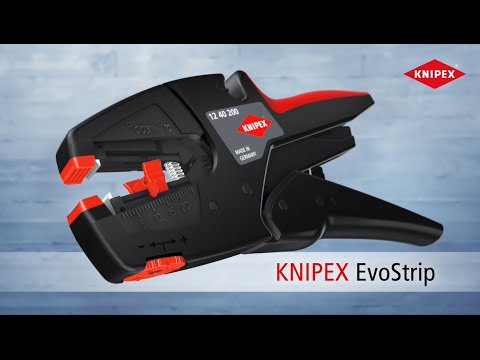

KNIPEX EvoStrip Self-Adjusting Insulation Stripper video►
1/10

12 40 200KNIPEX EvoStripSelf-Adjusting Insulation Stripper

Share
  • ›Effortless stripping in a large capacity range from 0.03 to 10.0 mm² / AWG 32 - 8
  • ›No damage to the conductors thanks to automatic adaptation to different conductor cross-sections
  • ›With its two-component handle and comfortable handle width, it sits comfortably in the hand and the ingenious handle design minimizes the risk of hand injuries
  • ›Versatile applications thanks to generous stripping range of 3 - 22 mm, and up to 25 mm without length stop
  • ›Adjustable setting wheel in fine increments: The adjustable cutting depth allows the pliers to master the most demanding insulation jobs – even under extreme temperature conditions
  • ›Top-mounted cable cutter for copper and aluminium conductors offers maximum visibility: Embossed, visible and tangible arrow always shows the exact cutting position, clean cuts thanks to optimised cutting edge geometry for finely stranded conductors up to 10 mm², solid conductors up to 6 mm²
  • ›For solid, multi-stranded and finely stranded conductors with plastic or rubber insulation, also for ribbon cables up to 10 mm wide
  • ›Raised, non-slip handle collar in front of the cable cutter provides reliable grip
  • ›With integrated tether attachment point in the handle: For reliable tool protection when working at heights, ANSI-compliant and compatible with KNIPEX Tethered Tools tethering system
  • ›Smooth-running mechanism guarantees long-term performance, comfortable working due to low noise levels
  • ›High-quality, wear-resistant stripping blades and glass fibre reinforced plastic ensure long-lasting performance – for thousands of stripping cycles without compromise. Blades can be replaced quickly and cost-effectively when worn.
  • ›For thin ribbon cables up to 10.0 mm width in a single pass

Technical attributes

Part No.
12 40 200
EAN
4003773026662
Weight
202 g
Dimensions
200 x 95 x 21 mm
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
