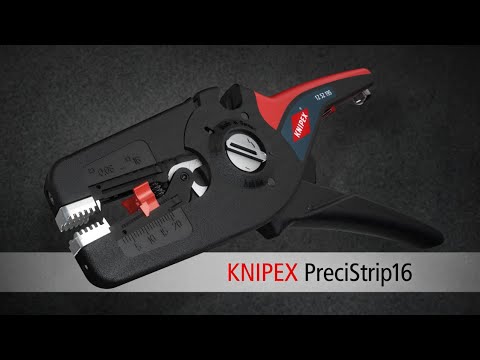

12 52 195KNIPEX PreciStrip16®Automatic insulation stripper
Share- ›Simple, precise stripping of fine wires and solid round cables with a wide capacity range from 0.08 to 16 mm² with only one pair of pliers
- ›Good grip provided by semi-circular grooved metal holding clamps; exact cut thanks to parabolic stripping blade
- ›An automatism regulates the depth of the cut; the neutral point of the automatism can be adjusted in fine steps in special operating conditions (insulation material, temperature)
- ›Additionally available: Blade block (12 49 32) for very hard halogen-free cables from 4 - 16 mm²
- ›With adjustable length stop for precision work repeated accurately each time
- ›With cable cutter on top for copper and aluminum conductors, flexible up to 16 mm² (AWG 6), solid up to 6 mm² (AWG 10)
- ›Inscription area for customisation
- ›Comfortable operation with ergonomic dual-component handle
- ›With tether attachment point, suitable for KNIPEX Tethered Tools accessories
- ›Easily replaceable blade cassette
Technical attributes
- Part No.
- 12 52 195
- EAN
- 4003773085829
- Weight
- 180 g
- Dimensions
- 190 x 120 x 28 mm
- REACH compliant
- contains SVHC
- RoHS compliant
- not applicable
- Stripping capacities in square millimetres
- 0.08 — 16.0 mm²
- AWG
- 28 — 6
