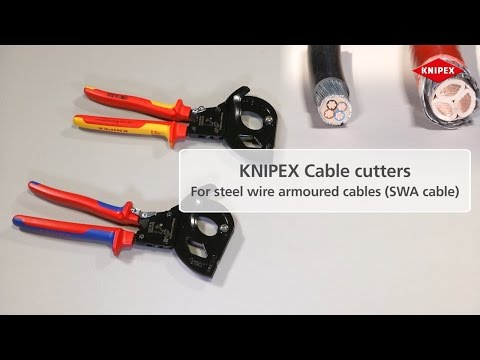

95 32 315 ACable Cutter(ratchet action) For steel wire armoured cables (SWA cable)
Share
- ›Sturdy. Easy to use. Stable.
- ›Innovative three-stage ratchet-drive with high leverage for easy cutting in one-hand and two-hand operation
- ›Simple handling as a result of low weight and compact design - can be used even in confined areas
- ›Pinch guard prevents operators' fingers being pinched
- ›For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228)
- ›Manual open and emergency release possible in any position
- ›Lockable for transport in closed condition - saves space and protects the tool
- ›Cuts through steel wire armoured cables up to Ø 45 mm / 380 mm² (e.g. 4 x 95 mm²) using one or two-handed operation
- ›Precision-ground blades and induction-hardened cutting edges cut smoothly and neatly without crushing
- ›Fixed handle with support area for putting down the pliers when cutting
- ›Not suitable for cutting ACSR cable and wire rope!
Technical attributes
- Part No.
- 95 32 315 A
- EAN
- 4003773078562
- Pliers
- black lacquered
- Handles
- with multi-component handles
- Weight
- 800 g
- Dimensions
- 315 x 140 x 30 mm
- REACH compliant
- does not contain SVHC
- RoHS compliant
- not applicable
- Cutting capacity copper cable, multiple-stranded
- Ø 45 mm
- MCM
- 750
