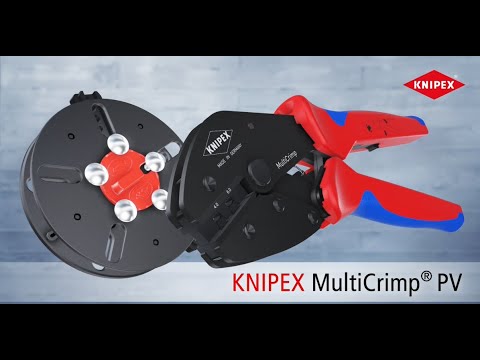

97 33 03KNIPEX MultiCrimp®Crimping Pliers with changer magazine
Share
- ›Universal, high-performance crimping pliers of professional quality for photovoltaic systems
- ›Just one tool with three crimping dies for MC4® / MC4® Evo 2, uninsulated cable connectors and wire ferrules
- ›Quick and easy change of crimping dies without additional tools
- ›For PV cables, earthing conductors and cabling to the meter cabinet
- ›Crimps connectors for PV conductors - with crimping die 97 39 42 for MC4® and MC4® Evo 2 connectors in 4 and 6 mm²
- ›Crimps connections of e.g. earthing cables - with crimping die 97 39 13 for uninsulated cable connectors in 0.5 - 10 mm²
- ›Crimps conductors from the inverter to the meter cabinet - with crimping die 97 39 08 for insulated and uninsulated wire ferrules in 0.25 - 6 mm²
- ›Safe and secure storage of the interchangeable dies in a round magazine for up to 5 crimping dies
- ›Customizable with optional crimping dies 97 39 05/06/09
- ›Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
- ›The crimping dies 97 49 xx of crimping system pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02/03
Technical attributes
- Part No.
- 97 33 03
- EAN
- 4003773092599
- Pliers
- burnished
- Handles
- with multi-component handles
- Weight
- 885 g
- Dimensions
- 250 x 75 x 28 mm
- REACH compliant
- contains SVHC
- RoHS compliant
- not applicable
- Application
- Wire ferrules
- Capacity in square millimetres
- 0.25 — 6.0 mm²
- AWG
- 24 — 10
Documents
Spare Parts
97 39 08
Die set For insulated and non-insulated wire ferrules 0.25 - 6 mm²
EAN: 4003773070092
97 39 13
Die set For non-insulated cable connectors
EAN: 4003773070108
97 33 03
97 33 03
97 39 42 Die set For MC4®/MC4® EVO 2 connectors with 4 / 6 mm² Matching accessories
EAN: 4003773092582
97 39 08
Die set For insulated and non-insulated wire ferrules 0.25 - 6 mm²
97 39 13
97 39 13
0,25 – 6,0 mm²
97 39 13
Die set For non-insulated cable connectors
97 39 42
97 39 42
0,5 – 10 mm²
97 39 42
Die set For MC4®/MC4® EVO 2 connectors with 4 / 6 mm² 1/3
Matching accessories
All variations
97 39 06
Die set For insulated cable connectors
- Normal size
- 0,5 6,0 mm²
97 39 08
Die set For insulated and non-insulated wire ferrules 0.25 - 6 mm²
- Normal size
- 0,25 – 6,0 mm²
97 39 09
Die set For insulated and non-insulated wire ferrules 10 / 16 / 25 mm²
- Normal size
- 10 / 16 / 25 mm²
97 39 13
Die set For non-insulated cable connectors
- Normal size
- 0,5 – 10 mm²
97 39 42
Die set For MC4®/MC4® EVO 2 connectors with 4 / 6 mm²
97 39 90
Changer magazine Empty
97 33 01
KNIPEX MultiCrimp® Crimping Pliers with changer magazine
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,25 – 6,0 mm²
- Length
- 250 mm
97 33 02
KNIPEX MultiCrimp® Crimping Pliers with changer magazine
- Length range
- 181-250 mm
- Surface
- atramentised / lacquered / burnished
- Grips
- multi-component grips
- Normal size
- 0,5 – 6,0 mm²
- Length
- 250 mm
97 33 LE
KNIPEX MultiCrimp® Crimping Pliers with changer magazine, empty
- Length
- 250 mm
97 39 05
Die set For non-insulated open plug type connectors (plug width 4.8 + 6.3 mm)
- Normal size
- 0,5 – 6,0 mm²
